A Camera Made From Scratch
A low resolution camera HAT compatible with Arduino Mega.
With a 16x16 pixel image sensor, this camera has a resolution of 0.256 kP (Kilopixels). The board can be attached directly to an Arduino Mega with header pins. Each pixel was placed by hand.
Live video feed.
A lens can be used to focus images onto the sensor, and the brightness data from each pixel can be visualized in real time with code.

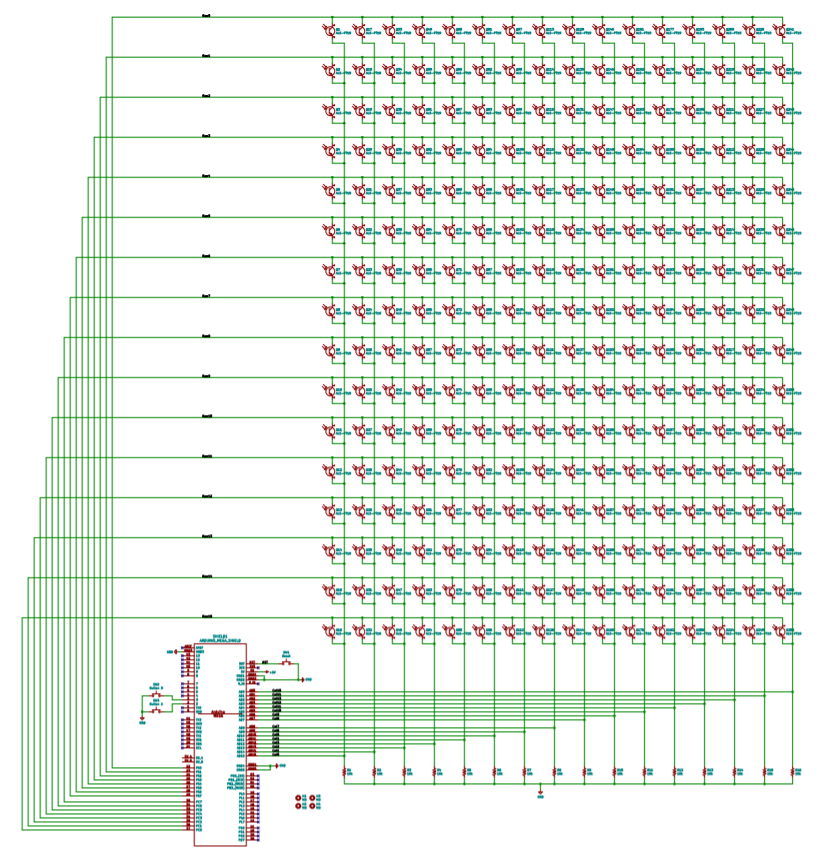

Drawings

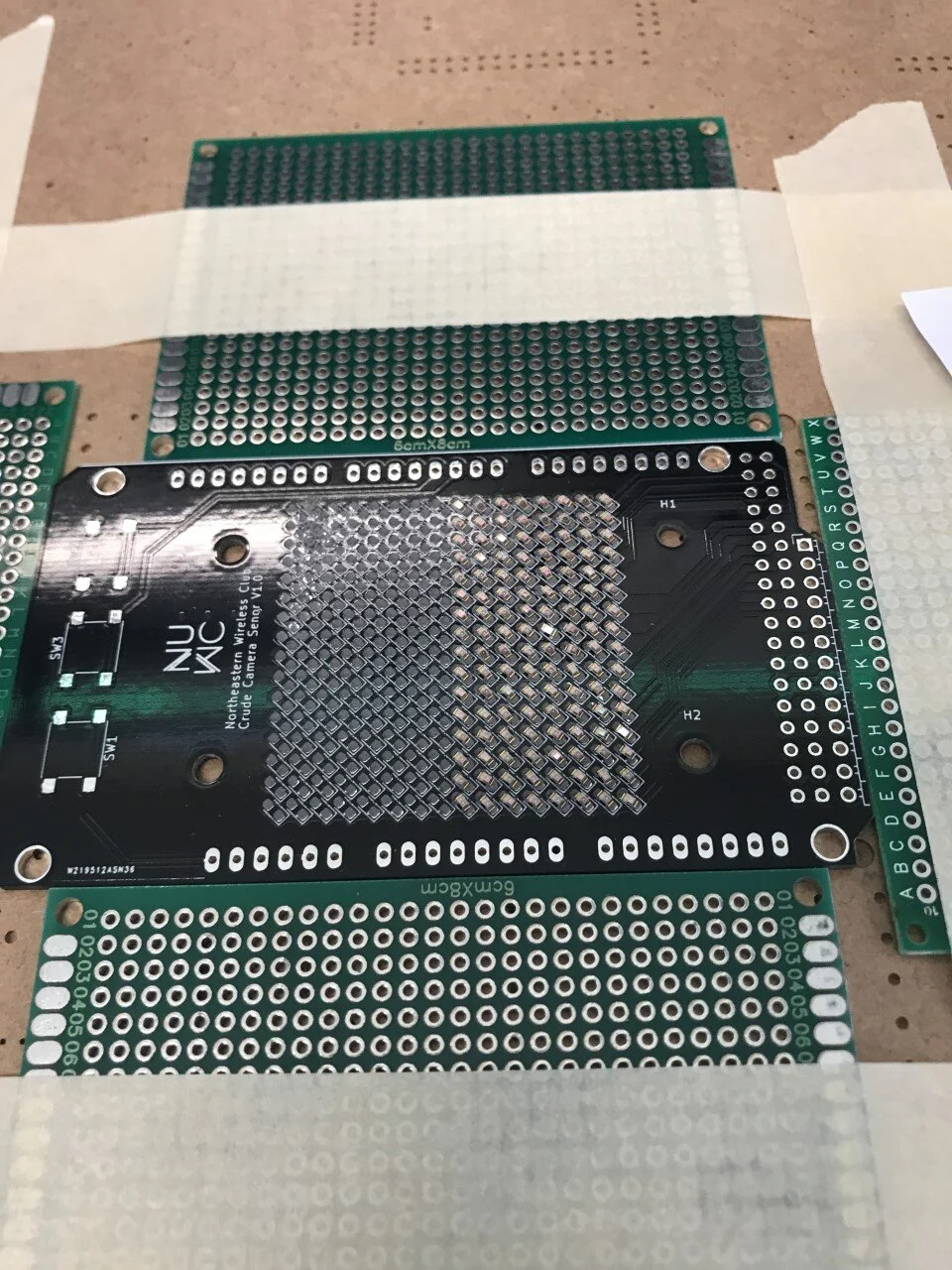

Fabrication
